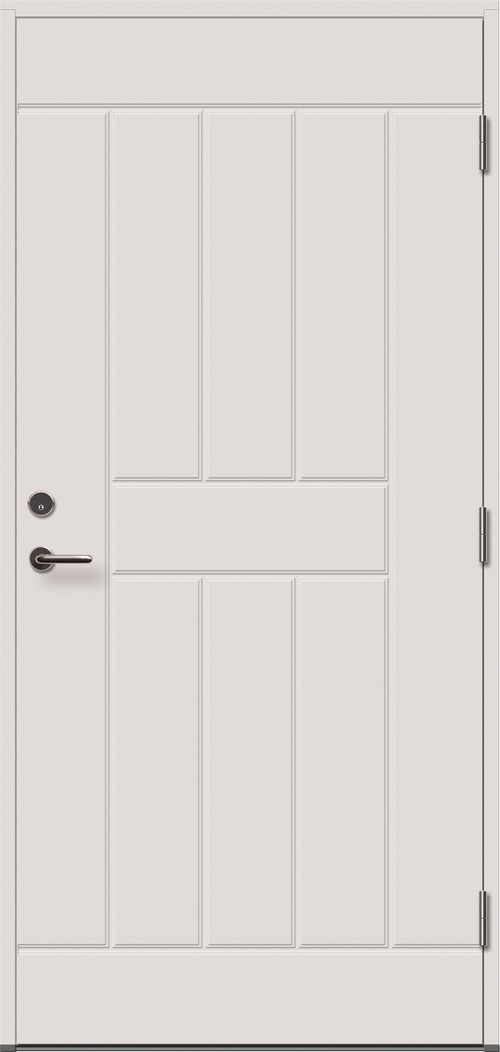

External fire resistant door T1

External fire resistant door T1

Technical parameters

Door leaf: Without overlaps 62 mm thick
Door frame: Glued pine 42×105 mm
Threshold: Combined oak lacquered + aluminum
Lock: ASSA 565 without handle and cylinder
Hinges: 3248-110 TMKS Zn 3 psc.
Purpose: Private houses, institutions, technical premises



Qualitative parameters

Wall opening: 900/1000×2100
Construction dimensions: 890/990×2088
Fire resistance: EI30
Thermal resistance: Blind U=1,0 W/m².K
Sound insulation: Rw=35 dB
Wind load: 4C
Water Resistance: 7B
Air permeability: 4
Warranty: 2 year

Description

VAU FD14 Declaration of Performance FD14v01

VAU FD14 Detailed information
